Description

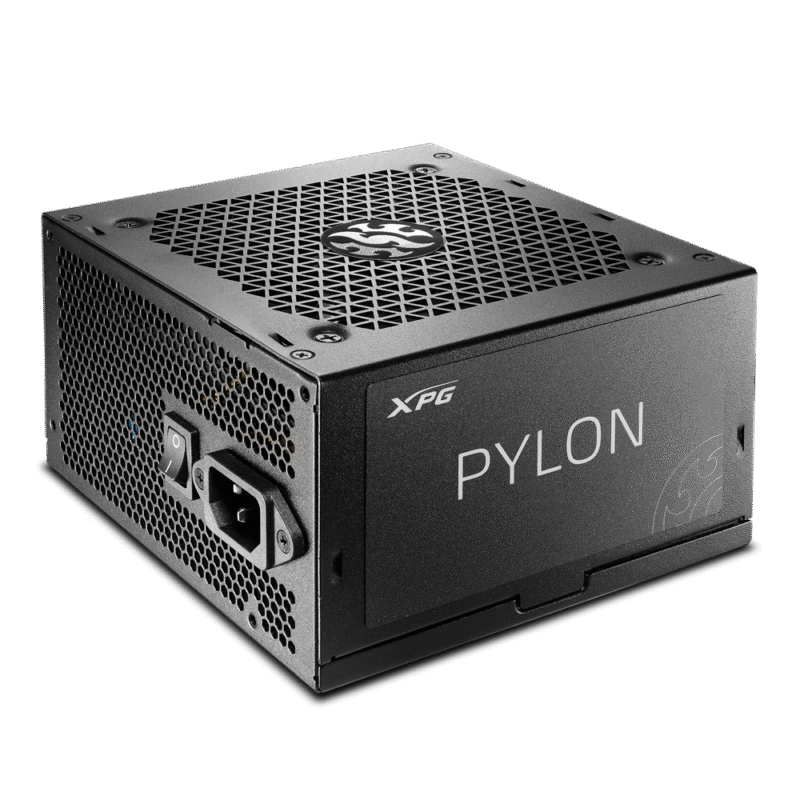

ADATA XPG PYLON 550 BRONZE SMPS

Dimensions (L x W x H): 140 x 150 x 86mm | Cybenetics Rating: BRONZE | 80 Plus Rating: BRONZE | ATX Version: Intel ATX 12V V2.4 | Protections: OCP / OVP / UVP / OPP / SCP / OTP / NLO / SIP | PFC: 0.99 | Input Voltage: 100-240V | Input Current: 8A/4A | Input Frequency: 50Hz – 60Hz | Operating Temperature: 50°C | Fan Size: 120mm | Fan Bearing: FDB (Fluid Dynamic Bearing) | Fan Speed: 2,000 RPM | MTBF: 100K Hours at 25℃ | ATX 24 Pin Connector: 1 | EPS 8 (4+4) Pin Connector: 1 | EPS 8 Pin Connector: 0 | PCI-E 6+2 Pin Connector: 2 | Molex 4 Pin Connector: 2 | Certification: CE / UKCA / CB / FCC (IC) / EAC / CCC / TUV / cTUVus / TUV S-Mark / RCM / NOM / BSMI / KC | Product：1.77kg (3.9lb) ±5% | with Package：2kg ±5%

The ADATA XPG PYLON 550 BRONZE SMPS (PYLON 550B-BKCEU) is a reliable non-modular power supply unit engineered for mid-range gaming builds and everyday computing. With 80 PLUS Bronze certification, it guarantees energy efficiency at 20%, 50%, and 100% of rated loads, ensuring your PC consumes less power while delivering consistent performance for gaming, content creation, and productivity tasks.

DC-to-DC Circuit Design for Stable Power

The standout feature of the XPG PYLON is its advanced DC-to-DC circuit design with 100% +12V Full Power. This ensures power delivery remains consistent and power-efficient across all load conditions, capable of supporting mid to high-end graphics cards and CPUs. Unlike cheaper PSUs that deliver unstable power at lower loads, the PYLON maintains stable voltage rails, protecting your expensive components from power fluctuations and ensuring smooth system operation.

105°C Japanese Capacitor for Maximum Durability

Built with high-quality 105°C Main Japanese Capacitor, the XPG PYLON Bronze Series ensures great durability and offers the highest stability and reliability. Japanese capacitors are known for their superior quality, longer lifespan, and better performance under thermal stress compared to cheaper alternatives. This makes the PYLON ideal for 24/7 continuous power system operation, whether you’re gaming, streaming, or running intensive workloads.

Ultra-Quiet FDB Fan with Smart Control

The built-in 120mm Fluid Dynamic Bearing (FDB) Fan starts at around 700 RPM at 25°C ambient temperature and maintains its low fan speed until around 70% power load. This smart fan control ensures quiet operation during light to moderate usage, while still providing adequate cooling under heavy loads. The FDB bearing technology also extends fan lifespan compared to standard sleeve bearings, reducing maintenance and replacement costs.

8 Industrial-Level Protections for Maximum Safety

The ADATA XPG PYLON 550 BRONZE SMPS is designed for both efficiency and safety, featuring 8 industrial-level protections:

• OCP (Over Current Protection) prevents damage from excessive current

• OVP (Over Voltage Protection) safeguards components from voltage spikes

• UVP (Under Voltage Protection) protects against insufficient voltage

• OPP (Over Power Protection) prevents overload conditions

• SCP (Short Circuit Protection) protects against short circuits

• OTP (Over Temperature Protection) prevents overheating

• NLO (No Load Operation) safe operation without load

• SIP (Surge Inrush Protection) protects against power surges

Comprehensive Connector Suite

The non-modular design comes with all necessary connectors for most builds:

• 1× 20+4 Pin Motherboard Connector for primary power

• 1× 8 (4+4) Pin ATX 12V Connector for CPU power

• 2× 6+2 Pin PCI-E Connectors for graphics cards (supports GPUs up to ~450W TDP)

• 5× SATA 5 Pin Connectors for SSDs/HDDs

• 2× Peripheral (Molex) 4 Pin Connectors for legacy devices

• 1× Floppy 4 Pin Connector for older drives

Global Certifications and Compliance

The ADATA XPG PYLON 550 BRONZE SMPS complies with Intel ATX Power Supply Design Guide V2.52, including sleep mode function for energy savings. It also meets ErP 2014 Lot 3 Regulation for environmental efficiency. The PSU carries multiple certifications including CE, UKCA, CB, FCC, EAC, CCC, TUV, cTUVus, RCM, NOM, BSMI, BIS, and KC, ensuring global compatibility and safety standards.

Perfect for Multiple Use Cases

• Mid-Range Gaming: Power GTX 1650, RX 6500 XT, RTX 3050, RX 6600 builds

• Office PC: Reliable power for work-from-home setups and productivity

• Content Creation: Stable power for light video editing and photo editing

• 24/7 Operation: Designed for steady continuous power system operation

What’s in the Box

• 1× ADATA XPG PYLON 550 BRONZE SMPS

• 1× AC Power Cord

• 1× User Manual

• 4× PSU Screws

With its black color scheme, standard ATX dimensions (140mm × 150mm × 86mm),  this PSU offers exceptional value for budget to mid-range builders. Backed by a 5-year warranty and ADATA’s renowned quality standards, it’s the perfect choice for builders who want reliable, efficient power without premium pricing.
