Description

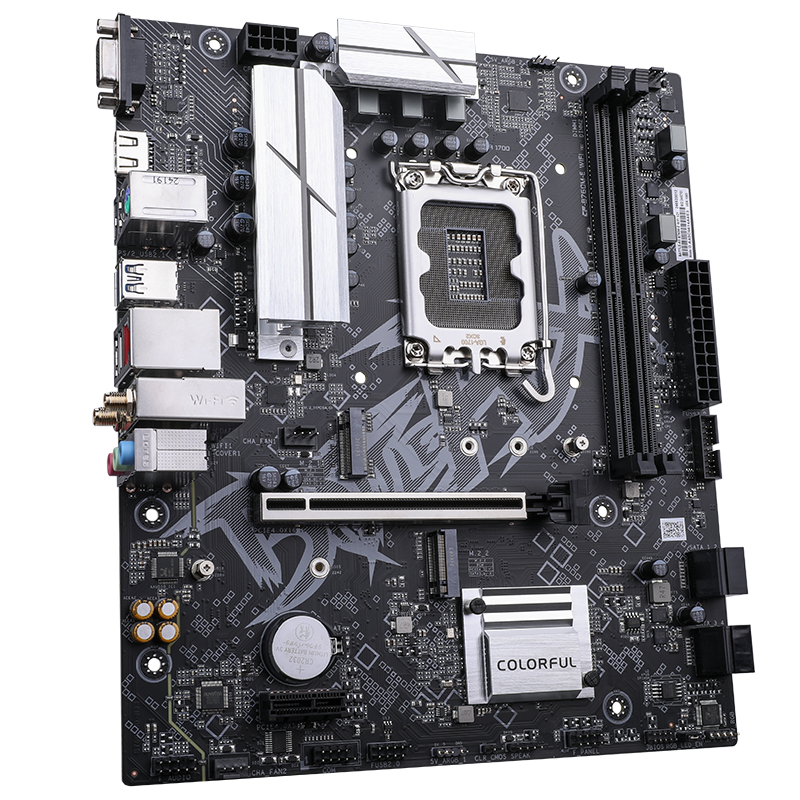

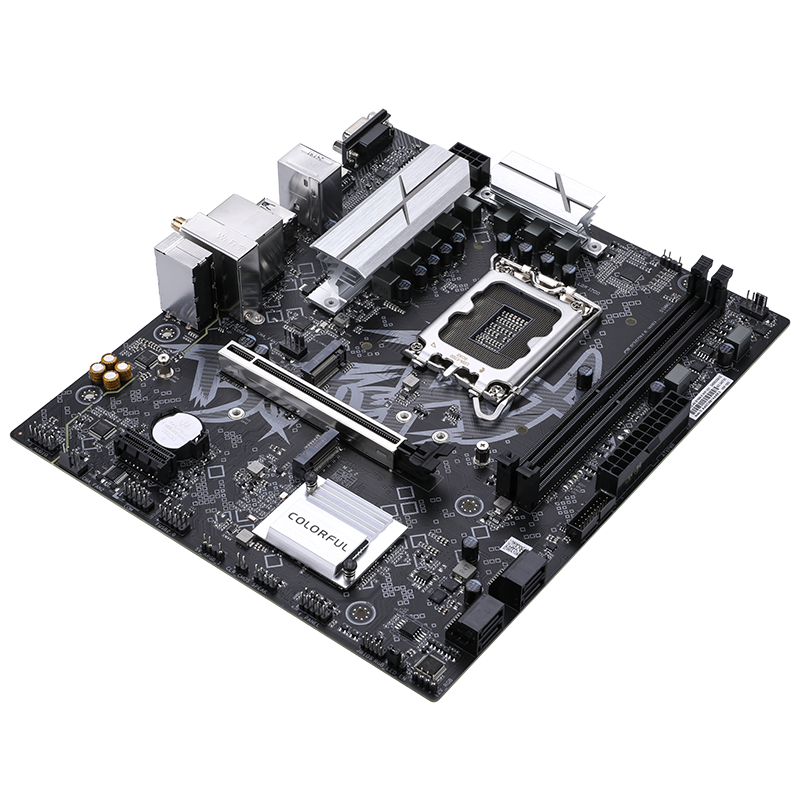

Colorful BATTLE-AX B760M-E WIFI V21A Motherboard

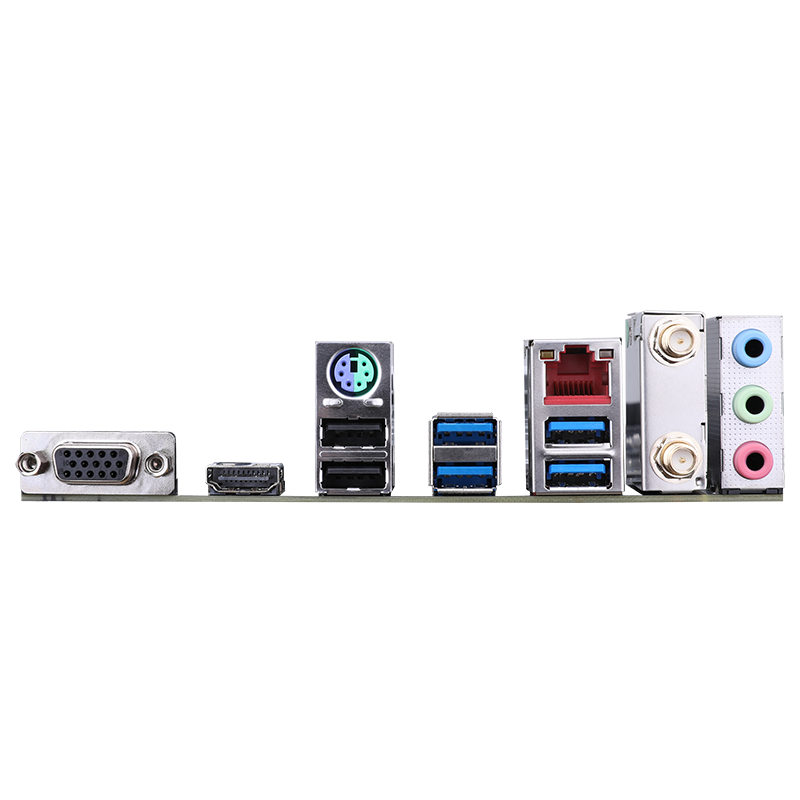

Model: Colorful BATTLE-AX B760M-E WIFI V21A motherboard | Product Series: BATTLE-AX series | Chipset Intel: B760 | Processor: Support the 14th/13th and 12th generation Intel adapting to the LGA 1700 slot | Memory: 2 DDR4 memory slots up to 64 GB DDR4-4400(OC) | SATA Ports: 2 M.2 slots and 4 SATA 6Gb/s hard disk interfaces | Rear I/O : 2×USB 2.0 interfaces, 4×USB 3.2 Gen 1 Type-A interfaces, 1×VGA interface, 1×HDMI 2.0 interface, supports up to 4K 60Hz resolution, 1×PS/2 interface, 1×2.5G network interface, 2×Wi Fi 6 antenna interfaces, 3×Audio interfaces |

Expansion Slots: 1 PCIe 5.0 x16 slot, 1 PCIe 4.0 x1slot | BIOS: 128M UEFI, support multiple languages | Power Management: Support S3, S4, network S5 wake-up, support scheduled startup, call startup | Hardware Monitor: CPU fan speed controllable, system fan speed controllable, CPU temperature monitoring, System temperature monitoring, and each group voltage monitoring | LAN: RTL8125BG 2.5Gbit network card, AX101 WiFi 6 wireless network card, Bluetooth 5.2 | Audio: Realtek ALC897 high-fidelity decoding chip, supports 7.1 channels | Configuration: M-ATX, 245mm x 210mm

Colorful BATTLE-AX B760M-E WIFI V21A Motherboard

The Colorful BATTLE-AX B760M-E WIFI V21A Motherboard is a modern micro-ATX motherboard based on the Intel B760 chipset, designed for budget-conscious gamers and PC builders who demand cutting-edge features without compromising on performance. Supporting Intel 12th, 13th, and 14th Gen processors with LGA 1700 socket, this board delivers blazing-fast performance for gaming, content creation, multitasking, and everyday computing tasks.

Intel B760 Chipset Performance

Built on the proven Intel B760 chipset with LGA 1700 socket, this motherboard supports Intel Core 12th, 13th, and 14th Gen processors including i3, i5, i7, and i9 series, plus Pentium Gold and Celeron. The chipset is optimized for stable performance with 12th and 13th Gen Intel CPUs, ensuring reliable operation even during extended gaming sessions or intensive workloads like video editing and 3D rendering.

DDR4 Memory with High-Speed Support

Equipped with 2× DDR4 DIMM slots, this motherboard supports up to 64GB of RAM (32GB per slot) with speeds up to DDR4-4400MHz (overclocked), plus 4266/4000/3733/3600/3466/3200/3000/2933/2800/2666/2400/2133 MHz. Intel XMP memory technology optimizes RAM performance for maximum throughput, while dual-channel memory technology ensures balanced data flow for improved system responsiveness.

Dual M.2 Storage for Maximum Speed

The standout feature of this motherboard is its 2× PCIe 4.0 x4 M.2 SSD slots, providing dual ultra-fast storage options for your operating system, games, and applications. This dual M.2 configuration allows you to install Windows on one drive and games on another, or set up RAID arrays for enhanced performance. M.2 storage delivers significantly faster speeds than SATA, reducing loading times and improving system responsiveness.

Realtek 2.5G Fast Wired Networking

Unlike standard Gigabit LAN, this motherboard features a Realtek 2.5G fast wired network interface card, providing ultra-fast wired networking speeds up to 2.5Gbps—2.5x faster than standard Gigabit Ethernet. This is perfect for competitive gaming, 4K streaming, large file transfers, and future-proofing your network infrastructure for faster internet connections.

WiFi 6 + Bluetooth 5.2 Wireless Networking

Built-in WiFi 6 (AX101) provides fast wireless networking with speeds up to 1.2Gbps, low latency, and improved range for seamless gaming, streaming, and downloads without Ethernet cables. Bluetooth 5.2 enables wireless connectivity for keyboards, mice, headphones, and other peripherals, eliminating cable clutter and providing a cleaner setup.

Multi-Monitor Display and High-Fidelity Audio

HDMI + VGA display outputs support multi-monitor setups without requiring a dedicated graphics card, perfect for budget builds, office setups, or productivity workflows. The Realtek high-fidelity decoding chip delivers crystal-clear 5.1-channel audio for immersive gaming, movies, and music. Dual 5V 3-pin ARGB headers plus iGame Center software enable customizable lighting effects to match your setup’s aesthetic.

Comprehensive Connectivity

The Colorful BATTLE-AX B760M-E WIFI V21A Motherboard provides 4× USB 3.2 Gen 1 Type-A high-speed rear interfaces for fast data transfer up to 5Gbps, plus 2× USB 2.0 ports for legacy devices. Additional USB headers allow expansion to connect various devices simultaneously, ensuring your system remains flexible and upgradeable.

Perfect for Multiple Use Cases

• Budget Gaming: Build an affordable gaming rig with Intel i5-12400F or i5-13400F

• Dual M.2 Setup: Ideal for users who want separate OS and game drives

• Home Office: Perfect for work-from-home setups with WiFi 6 and 2.5G LAN

• Content Creation: Handle video editing, photo editing, and streaming with i7 processors

What’s in the Box

• 1× Colorful BATTLE-AX B760M-E WIFI V21A Motherboard

• I/O Shield

• WiFi antenna

• SATA cables

• Quick start guide

• Warranty documentation

With its black color scheme, compact 225mm × 190mm dimensions, and premium features at budget-friendly pricing, this motherboard offers exceptional value backed by Colorful’s reputation for quality. Manufactured with strict quality controls and modern WiFi 6 + 2.5G LAN technology, it’s the perfect choice for builders who want next-gen connectivity without premium pricing.
