Description

COOLER MASTER ELITE GOLD 1000W SMPS

Product Name: COOLER MASTER ELITE GOLD 1000W SMPS | Model: MPW-A001-AFAG | ATX Version: ATX 12V Ver. 3.1 | PFC: Active PFC | Input Voltage: 100-240V | Input Current: 6 ~ 12A | Input Frequency: 50-60Hz | Dimensions (L x W x H): 140 x 150 x 86 mm | Fan Size: 120mm | Fan Bearing: FDB | Efficiency: ≥90% @ Typical Load | 80 PLUS Rating: 80 PLUS Gold | ErP 2014 Lot 3: Yes | Operating Temperature: 0-40°C | Power Good Signal: 100 – 150 ms | Hold Up Time: ≥16ms at 80% Load | MTBF: >100,000 hours​ @ 25℃ ambient | Protections: UVP / OVP / OPP / OTP / SCP | Regulatory: cTUV us, CB, CE, FCC, BSMI, EAC, RCM, UKCA, RoHS2.0 , REACH | ATX 24 Pin Connectors: x1 = 1 (600mm) | EPS 4+4 Pin Connectors: x2 = 2 (700mm) | SATA Connectors: x9 = 3 (500+100+100mm) |

Peripheral 4 Pin Connectors: x3 = 1 (500+100+100mm) | PCI-e 6+2 Pin Connectors: x6 = 3 (550+120mm) | 12+4 Pin Connectors: x1 = 1 (600mm) | Series: Elite Series | Form Factor: ATX | Watts: 1000W | Modular: Fully Modular | 80 Plus Efficiency: Gold | Warranty: 10 Years

The COOLER MASTER ELITE GOLD 1000W SMPS is a premium fully modular power supply engineered to deliver stable, efficient, and reliable power for modern gaming systems, content creation workstations, and enthusiast PC builds. Designed according to the latest Intel ATX 3.1 specification and supporting PCIe 5.1, this power supply is fully prepared for today’s high-performance graphics cards and tomorrow’s hardware upgrades.

COOLER MASTER ELITE GOLD 1000W SMPS

Delivering a continuous 1000W output, the Elite Gold 1000 V2 provides ample power for flagship GPUs, high-core-count processors, liquid cooling systems, and multiple storage devices. Whether you’re building a gaming PC equipped with NVIDIA GeForce RTX 50 Series graphics or a professional workstation handling demanding creative applications, this PSU ensures stable voltage delivery under heavy workloads.

Certified with 80 PLUS Gold, the Elite Gold 1000 V2 achieves up to 90% efficiency under typical operating conditions. Higher efficiency means less wasted energy, lower heat generation, reduced electricity consumption, and quieter overall system operation.

One of the standout features is its compliance with the latest ATX 3.1 power supply specification. Unlike previous-generation PSUs, the Elite Gold 1000 V2 is engineered to handle large transient power spikes generated by modern graphics cards. This significantly improves system stability during intensive gaming sessions, AI workloads, rendering, and content creation.

COOLER MASTER ELITE GOLD 1000W SMPS

The PSU includes a native 12V-2×6 connector, the latest evolution of high-power GPU connectivity replacing the earlier 12VHPWR connector. This provides direct compatibility with next-generation graphics cards while minimizing cable clutter and eliminating the need for bulky adapters.

Internally, Cooler Master utilizes a premium power conversion design consisting of Active Power Factor Correction (PFC), LLC Half-Bridge Resonant Topology, and DC-to-DC conversion. This advanced architecture delivers clean, stable voltage regulation with excellent ripple suppression, helping maximize component longevity and system reliability.

Cooling is handled by a quiet 120mm Hydro Dynamic Bearing (HDB) fan, which offers excellent airflow while maintaining low acoustic levels. The HDB bearing also provides extended operational life compared to conventional sleeve-bearing fans, ensuring dependable cooling throughout years of continuous operation.

COOLER MASTER ELITE GOLD 1000W SMPS

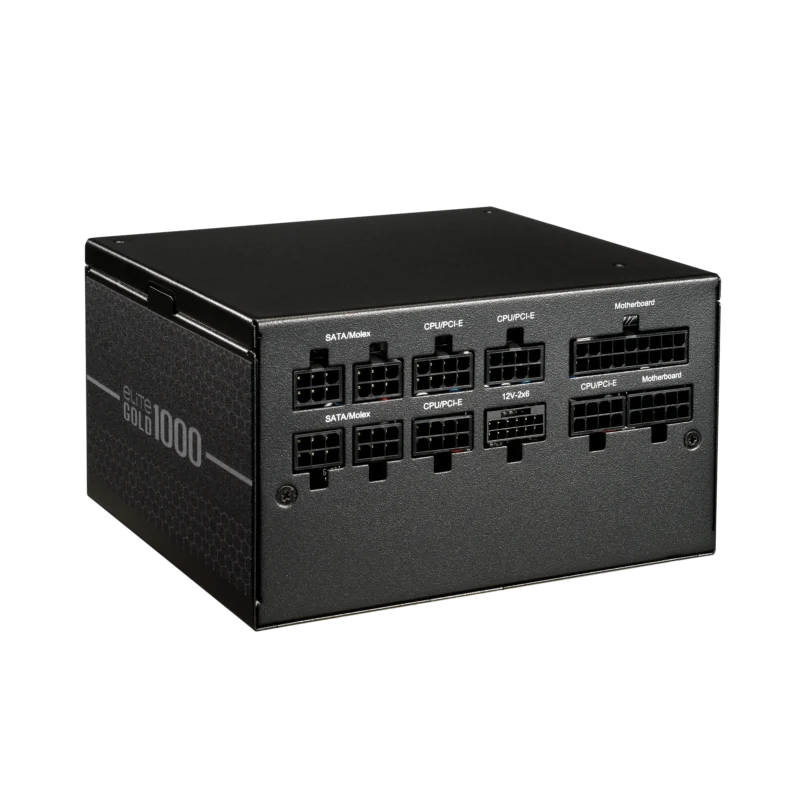

The fully modular cable system allows builders to install only the cables required for their configuration. This results in cleaner cable management, improved airflow, and a more organized system interior—especially beneficial for compact and showcase PC builds.

Safety remains a top priority with comprehensive hardware protection features including Over Voltage Protection (OVP), Over Current Protection (OCP), Over Power Protection (OPP), Short Circuit Protection (SCP), Under Voltage Protection (UVP), Over Temperature Protection (OTP), and Surge & Inrush Protection (SIP). These safeguards help protect both the power supply and connected hardware from electrical anomalies.

COOLER MASTER ELITE GOLD 1000W SMPS

With its compact 140mm chassis, cutting-edge ATX 3.1 support, PCIe 5.1 readiness, premium internal design, and 10-year manufacturer warranty, the Cooler Master Elite Gold 1000 V2 offers an ideal balance of performance, efficiency, and long-term reliability for demanding PC enthusiasts and professionals.

COOLER MASTER ELITE GOLD 1000W SMPS

Cooler Master Elite Gold 1000 | ATX 3.1 High-Efficiency PSU
