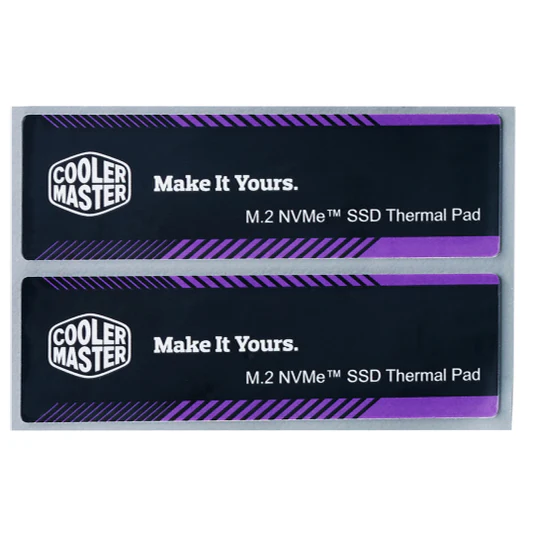

CoolerMaster M.2 NVMe SSD Thermal Pad CMA‑TNCLP2XXBK1‑GL (2PCS)
Original price was: ₹350.00.₹199.00Current price is: ₹199.00.
The CoolerMaster M.2 NVMe SSD Thermal Pad CMA‑TNCLP2XXBK1‑GL (2PCS) is a thin, pre‑cut thermal pad designed specifically for M.2 NVMe SSDs, helping to transfer heat from the SSD controller and NAND chips to the heatsink or motherboard shield for cooler, more stable storage performance.
2‑piece pack of CoolerMaster M.2 NVMe SSD Thermal Pad – model CMA‑TNCLP2XXBK1‑GL.
Sized 60 × 18 × 0.5 mm, optimized for common M.2 NVMe SSDs (2280, M.2‑322, M.2‑333‑style modules).
Ultra‑thin 0.5mm design with pre‑applied adhesive, so it installs like a sticker on the SSD controller, NAND, and DRAM.
Triple‑layer construction with copper foil substrate and graphite sputtering for excellent in‑plane heat spreading.
Thermal conductivity: over 900 W/m·K in‑plane (X‑Y) and about 120 W/m·K through‑plane (Z), enabling fast heat transfer.
Rated for up to 200°C, suitable for high‑speed NVMe drives under heavy read/write workloads.
Universal compatibility with unshielded NVMe SSDs that use either motherboard‑side or aftermarket heatsinks.
- Description
Description
CoolerMaster M.2 NVMe SSD Thermal Pad
Keep your M.2 NVMe SSDs running cool and stable with the CoolerMaster M.2 NVMe SSD Thermal Pad CMA‑TNCLP2XXBK1‑GL (2PCS), a purpose‑built thermal interface pad that bridges the gap between the SSD and its heatsink or motherboard shield. As NVMe drives push higher speeds and densities, they generate more heat, and proper thermal management becomes critical to avoid thermal throttling and maintain consistent performance. This set of two pads is engineered to help you achieve that without extra complexity or tools.
Each pad measures 60 × 18 × 0.5 mm, matching the typical footprint of the controller and NAND chips on many 2280‑form‑factor M.2 NVMe SSDs, including popular M.2‑322 and M.2‑333 module designs. At just 0.5 mm thick, the pad sits flush between the SSD and the heatsink, minimizing the risk of clearance issues with side‑panel heatspreaders or metal shields while still providing a continuous thermal path. The pre‑applied adhesive on one side means you can simply peel and stick the pad directly onto the SSD’s chips and then press the drive into the heatsink, making installation quick and tool‑free.
| Feature | Specification |
|---|---|
| Brand | CoolerMaster |
| Model Number | CMA‑TNCLP2XXBK1‑GL |
| Product Name | CoolerMaster M.2 NVMe SSD Thermal Pad 2pcs |
| Dimensions (L×W×H) | 60 × 18 × 0.5 mm |
| Thermal Conductivity (X‑Y) | >900 W/m·K |
| Thermal Conductivity (Z) | ≈120 W/m·K |
| Substrate Material | Copper foil |
| Sputtering / Surface Layer | Graphite |
| Maximum Operating Temperature | 200°C |
| Thickness | 0.5 mm, ultra‑thin |
| Adhesive | Pre‑applied, self‑sticking on one side |
| Compatibility | Universal M.2 NVMe SSDs (unshielded, 2280 / M.2‑322‑style modules) |
| Package Quantity | 2 pieces (2PCS) |
The pad uses a multi‑layer construction with a copper foil substrate and graphite sputtering layer, which together deliver very high in‑plane thermal conductivity for rapid lateral heat spreading across the SSD surface. Public specs list over 900 W/m·K in the X‑Y plane and about 120 W/m·K in the Z‑direction (thickness direction), which is excellent for a pad of this thickness and helps move heat efficiently from the hot spots of the controller and NAND toward the larger heatsink or metal shield. This translates to lower localized temperatures on the SSD die, reducing the chance of thermal throttling during sustained transfers, game loading, or content creation workloads.

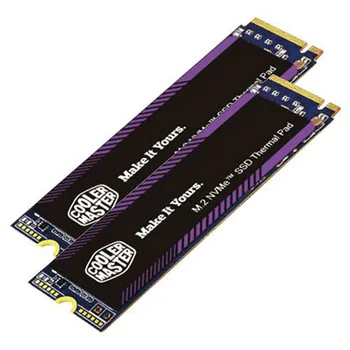

CoolerMaster M.2 NVMe SSD Thermal Pad
Temperature‑wise, the pad is rated to handle up to 200°C, making it suitable for high‑performance NVMe SSDs that can run quite hot under heavy I/O. This robust thermal rating ensures the pad remains mechanically and chemically stable even under long‑term high‑load conditions, so you don’t need to worry about drying out or delamination during normal use. Because it is a passive pad with no moving parts, there is no risk of noise or vibration, and it works with both built‑in motherboard heatsinks and aftermarket metal heatspreaders.
The 2‑piece pack (2PCS) design lets you equip two separate M.2 NVMe drives in a single PC build, which is ideal for systems with multiple NVMe slots or laptops that support dual M.2 modules. Users have reported noticeable temperature drops on the controller and NAND after adding a similar pad, in some cases around 10–15°C lower peak temperatures, illustrating how effective even a small interface upgrade can be. For gamers, streamers, and creators who rely on fast NVMe loading and sustained write speeds, CoolerMaster’s CMA‑TNCLP2XXBK1‑GL offers an inexpensive, easy‑to‑install way to improve thermal headroom and overall SSD reliability.
