Description

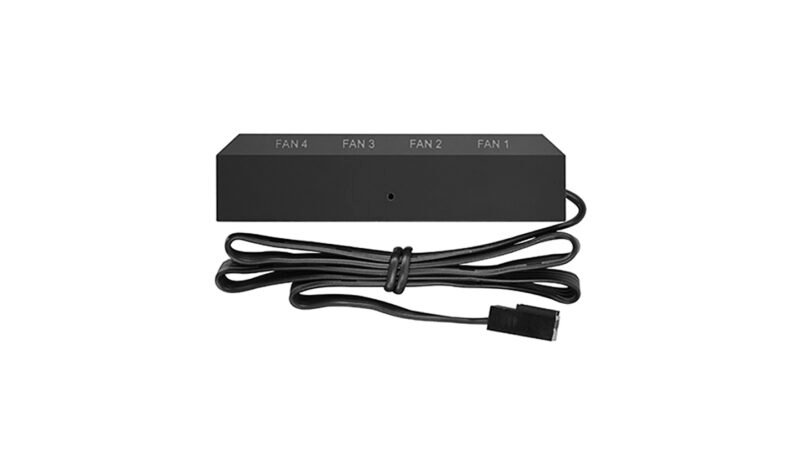

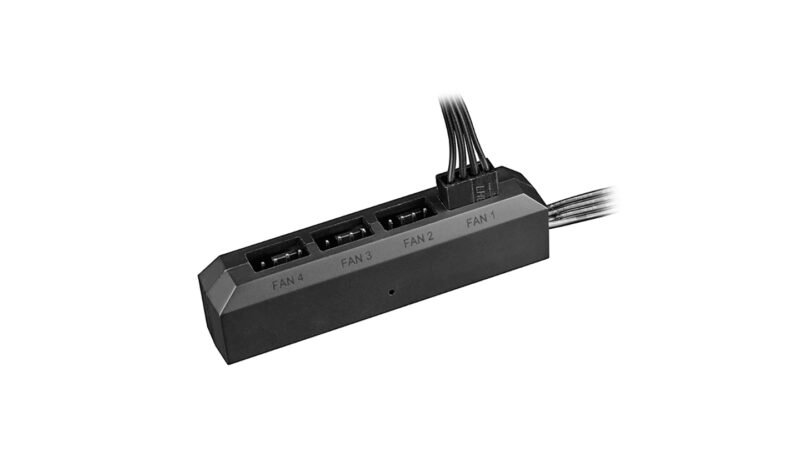

DEEPCOOL FH-04 4-Port Fan Hub Controller

Product Dimension: 68×13×17.5 mm | Net Weight: 022 g | Port Type: 4-pin×1 | Extension Port: 4-pin×4 | Length of HUB Strip Cable: 550 mm | Mounting Method: Double-faced Adhesive | EAN: 6933412795995P/N: DP-F04PWM-HUB

The DEEPCOOL FH-04 4-Port Fan Hub Controller is a compact 4-port fan hub controller that puts quiet, precise cooling control into every PC builder’s hands. With support for up to 4 independent 3-pin or 4-pin PWM fans, this hub enables users to greatly expand cooling capability within the chassis and enjoy enhanced system performance without the complexity of software controllers.

4-Port PWM Fan Hub with Universal Compatibility

The standout feature of the DEEPCOOL FH-04 4-Port Fan Hub Controller is its ability to support up to 4 fans (3-pin or 4-pin) through a single motherboard PWM header. This universal compatibility means the hub works seamlessly with both older 3-pin DC fans and modern 4-pin PWM fans, giving you maximum flexibility for your build. The 4-pin PWM control from the motherboard header enables precise, silent fan speed responsiveness, allowing you to fine-tune fan speeds through BIOS settings for optimal cooling and noise balance.

Compact Design with Self-Adhesive Mounting

The DEEPCOOL FH-04 4-Port Fan Hub Controller features an ultra-compact design measuring approximately 74 × 42 × 18 mm (74 × 20.5 × 21 mm) with a weight of just 22g-40g, making it one of the most space-efficient fan hubs available. The included double-sided self-adhesive strip allows quick, tool-free installation by sticking directly to metallic surfaces inside your PC case. This eliminates the need for zip ties, velcro, or screws, resulting in a cleaner, more professional build.

No Software Required – Plug-and-Play Simplicity

Unlike RGB controllers that require software installation, the FH-04 operates entirely through hardware-based control. Fan speeds are managed via your motherboard’s 4-pin PWM header or BIOS fan controls – no software or drivers needed. This plug-and-play simplicity ensures reliable performance without the risk of software conflicts, driver issues, or background processes consuming system resources. Simply connect the included PWM cable (~30 cm) to your motherboard and SATA power cable (~25 cm) for stable operation.

Reduces Cable Clutter & Simplifies Cable Management

The DEEPCOOL FH-04 4-Port Fan Hub Controller significantly reduces cable clutter by consolidating up to four fans onto a single hub, replacing the need for multiple motherboard headers. This creates a cleaner, more organized interior with improved airflow and easier troubleshooting. The reinforced plastic housing and PCB ensure durability while maintaining lightweight portability, making installation discreet and professional-looking.

SATA Power & 12V DC Operation

The FH-04 includes a dedicated SATA power connector (~25 cm cable) that provides stable, consistent power to all connected fans. This ensures the hub can handle multiple fans without overloading the motherboard header. The 12V DC operating voltage is compatible with standard ATX motherboards and ensures reliable fan operation across all four ports.

RGB Control Separation

The FH-04 controls fan power and speed only – it does not control RGB/ARGB lighting. RGB control must be handled through the fans’ dedicated RGB controller or motherboard RGB headers. This separation ensures that fan speed control does not interfere with RGB lighting functionality, allowing you to build a complete cooling and lighting ecosystem.

Perfect for Multiple Use Cases

• PC Building: Expand cooling capability with multiple case fans

• Cable Management: Reduce clutter by consolidating fan connections

• Quiet Operation: Precise PWM control for silent responsiveness

• System Cooling: Enhanced thermal performance with 4 independent fans

• RGB Builds: Fan speed control works alongside RGB lighting systems

• Budget Builds: Affordable solution for multi-fan setups without software complexity

Specifications at a Glance

• Model: DEEPCOOL FH-04 4-Port Fan Hub Controller (P/N: DP-F4PWM-HUB)

• Brand: DEEPCOOL

• Supported Fans: Up to 4 fans (3-pin or 4-pin)

• PWM Support: 4-pin PWM control from motherboard header

• Power Connector: SATA power cable (included)

• Dimensions: 74 × 42 × 18 mm (compact)

• Weight: 22g-40g

• Cable Length: PWM ~30 cm, SATA ~25 cm

• Operating Voltage: 12V DC

• Compatibility: Standard ATX motherboards with 4-pin PWM header

• Warranty: 1 Year

With its compact design, plug-and-play simplicity, universal fan compatibility, and professional cable management, the DEEPCOOL FH-04 is the perfect solution for PC builders who want to expand cooling capability without software complexity. Whether you’re building a budget system, a quiet workstation, or a gaming PC with multiple fans, the FH-04 delivers reliable performance at an affordable price point.
