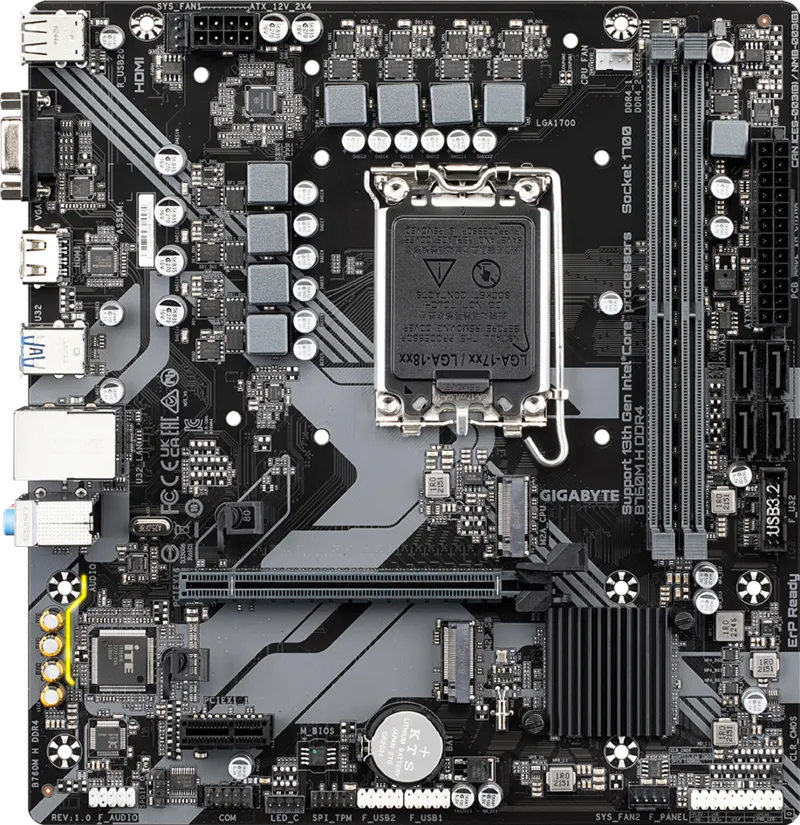

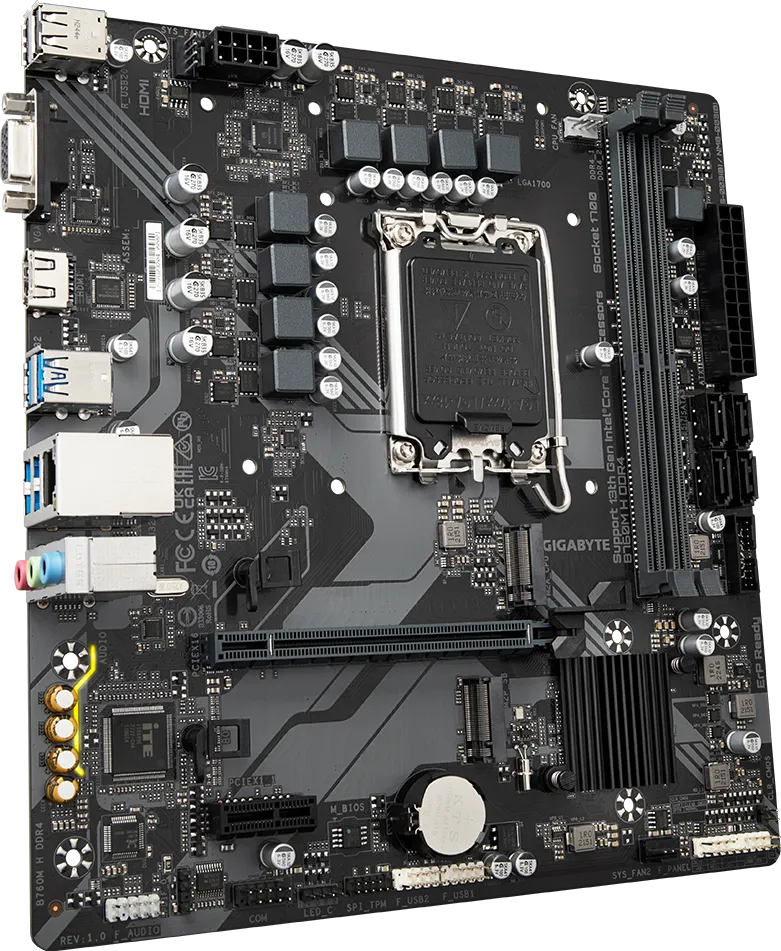

GIGABYTE B760M H DDR4 MOTHERBOARD

CPU: LGA1700 socket | Chipset: Intel B760 Express Chipset | Memory: Support for DDR4 3200, 2 x DDR4 DIMM sockets supporting up to 64GB | Integrated Graphics support: 1 x D-Sub port, 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz | Audio: Realtek Audio CODEC | High Definition Audio: 2/4/5.1/7.1-channel | LAN: Realtek GbE LAN chip (1 Gbps/100 Mbps) | Expansion Slots: 1 x PCI Express x16 slot, 1 x PCI Express x1 slot | Storage Interface: 1 x M.2 connector, 1 x M.2 connector, 4 x SATA 6Gb/s connectors | USB : 6 x USB 3.2 Gen 1 ports: 6 x USB 2.0/1.1 ports | BIOS: 1 x 128 Mbit flash | LAN bandwidth management software | Form Factor: Micro ATX Form Factor; 23.0cm x 21.5cm

The GIGABYTE B760M H DDR4 MOTHERBOARD is a reliable micro-ATX motherboard based on the Intel B760 chipset, designed for budget-conscious gamers and PC builders who demand solid performance for 12th, 13th, and 14th Gen Intel processors. With its Hybrid 6+1+1 Phases Digital VRM Solution, this board delivers stable power delivery for efficient CPU performance, making it perfect for gaming, multitasking, content creation, and everyday computing tasks.

Intel B760 Chipset Performance

Built on the proven Intel B760 chipset with LGA 1700 socket, this motherboard supports Intel 14th, 13th, and 12th Gen Core processors including i3, i5, i7, and i9 series, plus Pentium Gold and Celeron. The L3 cache varies with CPU, so check the CPU support list for specific details. The chipset is optimized for stable performance with 12th, 13th, and 14th Gen Intel CPUs, ensuring reliable operation even during extended gaming sessions or intensive workloads like video editing.

Equipped with 2× DDR4 DIMM slots, this motherboard supports up to 64GB of RAM (32GB per single DIMM capacity) with dual-channel memory architecture and speeds up to DDR4-3200/3000/2933/2666/2400/2133 MT/s. Intel Extreme Memory Profile (XMP) support optimizes RAM performance for maximum throughput. It also supports ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operating in non-ECC mode) and non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, providing flexibility for various memory configurations.

Hybrid Digital VRM Power Delivery

The standout feature of this motherboard is its Hybrid 6+1+1 Phases Digital VRM Solution, which provides stable and efficient power delivery to the CPU. This advanced power design ensures consistent performance under load, reduces heat generation, and improves overall system stability. The digital VRM solution offers better precision and efficiency compared to analog VRMs, making it ideal for sustained gaming sessions and productivity workloads.

PCIe 4.0 Graphics and Dual M.2 Storage

The 1× PCI Express x16 slot supports PCIe 4.0 and runs at x16, providing next-generation bandwidth for modern graphics cards. The additional 1× PCI Express x1 slot supports PCIe 3.0 and runs at x1, offering expansion options for Wi-Fi cards, sound cards, or other peripherals. The 2× M.2 Socket 3 connectors provide ultra-fast dual M.2 storage options for your operating system and games, delivering significantly faster speeds than SATA and reducing loading times.

Comprehensive Connectivity and Display

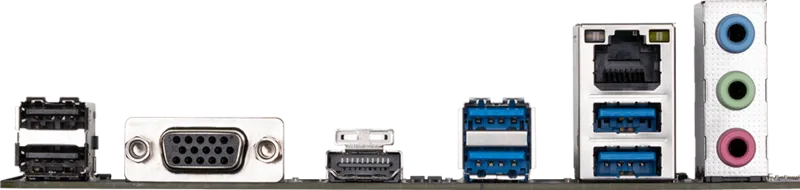

The GIGABYTE B760M H DDR4 MOTHERBOARD provides 4× USB 3.2 Gen 1 ports for fast data transfer up to 5Gbps, plus 2× USB 2.0/1.1 ports for legacy devices. Internal headers include 1× USB 3.2 Gen 1 header and 2× USB 2.0/1.1 headers for front panel expansion. HDMI + D-Sub (VGA) display outputs support multi-monitor setups without requiring a dedicated graphics card, perfect for budget builds or office productivity. HDMI supports 4096×2160@60Hz (HDMI 2.0 + HDCP 2.3), while D-Sub supports 1920×1200@60Hz.

High-Fidelity Audio and Networking

Realtek 6-channel high-definition audio delivers crystal-clear sound for gaming, movies, and music, with 3× audio jacks for speakers, microphone, and line-in. The S/PDIF Out header enables digital audio output for high-quality external DACs. Realtek Gigabit LAN (RJ-45) ensures stable wired networking for online gaming and streaming, with 4× USB 3.2 Gen 1 ports plus 2× USB 2.0 ports on the rear panel.

Perfect for Multiple Use Cases

• Budget Gaming: Build an affordable gaming rig with Intel i5-12400F or i5-13400F

• Office Productivity: Perfect for work-from-home setups with multi-monitor support

• Content Creation: Handle video editing, photo editing, and streaming with i7 processors

• Small Form Factor: Ideal for compact builds in Micro-ATX cases

What’s in the Box

• 1× GIGABYTE B760M H DDR4 MOTHERBOARD

• I/O Shield

• SATA cables

• Quick start guide

• 3-year warranty documentation

With its black color scheme, compact 23.0cm × 21.5cm × 3.5cm dimensions, and 750g weight, this motherboard offers exceptional value backed by GIGABYTE’s renowned quality and 3-year warranty. Windows 11 64-bit and Windows 10 64-bit ready, it’s the perfect choice for builders who want reliable performance without premium pricing.
