The Zotac RTX 5060 8GB TWIN EDGE is a compact, reference‑speed graphics card built on NVIDIA’s Blackwell architecture and the GeForce RTX 5060 GPU. With 3840 CUDA cores, 8 GB of GDDR7 memory, and a 128‑bit memory interface, this card is optimized for smooth 1080p gaming at high refresh rates and solid 1440p performance, especially when using DLSS 4 in supported titles. The 2497 MHz boost clock and modest power target make it ideal for budget‑ to mid‑range builds that want a reliable upgrade to modern ray‑traced and AI‑driven games.

8 GB GDDR7 & 1080p / 1440p Performance

Dual‑Fan IceStorm 2.0 Cooling & SFF‑Friendly Design

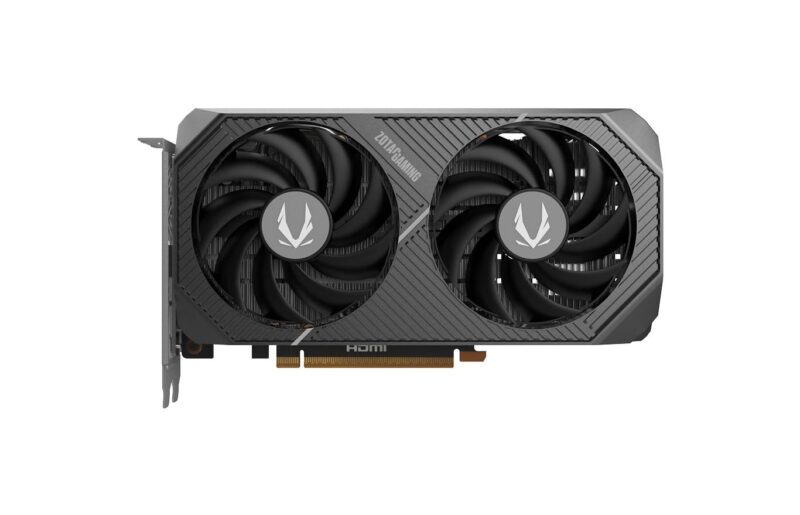

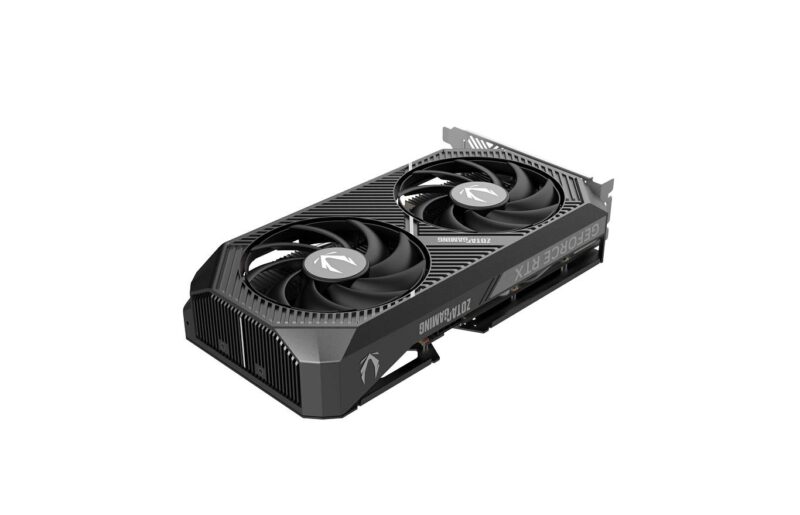

Zotac equips the RTX 5060 TWIN EDGE with IceStorm 2.0 cooling, featuring dual BladeLink axial fans and a massive heatsink + heatpipe array that moves air efficiently across the thermal mass. The metal backplate stiffens the PCB and helps radiate some heat, while the compact, 2‑slot form factor (around 220.5–241.5 mm long, 2‑slot tall) makes it a strong fit for small form‑factor (SFF) and mid‑tower cases. The 8‑pin PCIe power connector and 550 W recommended PSU keep the overall power and cabling requirements simple for mainstream builds without forcing a full‑tier‑up PSU upgrade.

DLSS 4, Ray Tracing & Modern Gaming Features

Thanks to Blackwell, the RTX 5060 TWIN EDGE supports DLSS 4, fourth‑gen RT Cores, and fifth‑gen Tensor Cores, enabling AI‑upscaled frame rates and full‑ray‑traced visuals. DLSS 4 can render at a lower internal resolution and upscale to your native output, giving you higher FPS in 1080p and 1440p titles with minimal quality loss. Ray tracing adds realistic lighting, reflections, and global illumination in supported games, while Reflex reduces system latency to keep your aiming and movement responsive in competitive shooters. The card also runs DirectX 12 Ultimate, supports OpenGL 4.6, and is G‑SYNC‑ready for smooth, tear‑free gaming at high refresh rates.

Outputs, Power, and Compatibility

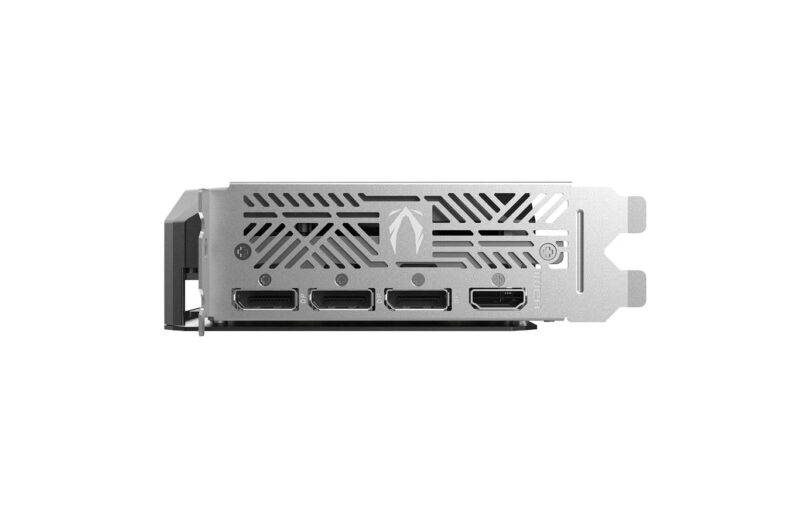

On the I/O side, the TWIN EDGE provides 3 × DisplayPort 2.1b (UHBR20) and 1 × HDMI 2.1b, letting you connect high‑refresh 1080p/1440p monitors, 4K TVs, or multi‑monitor setups. The PCIe 5.0 x16 interface ensures full bandwidth is available, even in older platforms with backward‑compatible slots. The recommended 550 W PSU and single 8‑pin connector make installation straightforward for typical gaming PCs, and an included 2×8‑pin to 12V‑2×6 adapter is common on many SKUs to maintain compatibility with newer PSUs. The FireStorm utility gives you basic monitoring of clocks, temps, and fan curves, and where supported, light fan and RGB tuning.
